In various industries, such as healthcare, manufacturing, agriculture, power generation, and food and beverage, industrial applications play a crucial role in achieving success. Air drying is essential for maintaining this success.

Water and moisture are often present in the atmosphere, particularly during rainy periods and in summer when temperatures exceed 43°C (109°F) and humidity levels average over 90%. This excessive moisture can lead to several problems, including corrosion, rust, and freezing in pipelines, which can result in damage to products and equipment.

In such moments of moisture-related crises, air drying using activated alumina balls offers an effective solution. Let us see how-

What is Air Drying in Industrial Applications?

The process of removing moisture from the air to prevent damage to equipment and products of various industries is known as air drying. This process is necessary because obtaining moisture-free air naturally is next to impossible, and the excess moisture can hamper the quality of the process and create damage to expensive machinery. To remove the moisture in industrial applications, a desiccant dryer is used.

What is a Desiccant Air Dryer?

A desiccant air dryer is an industrial equipment designed to eliminate moisture from the air that passes through it by utilizing desiccant materials. The most common type of desiccant air dryer has a two-tower system that maintains an uninterrupted air-drying process.

Why Is Air Drying Important?

An air dryer is an essential tool used in systems that rely on compressed air, such as factories and machinery that operate using air pressure. Air dryers are crucial for removing moisture from the compressed air.

Here are some key reasons why air dryers are so important:

1. Removes Water Contamination

Certain industries, like laser cutting, welding, plasma generation, food manufacturing, and pharmaceuticals, require clean air to operate effectively. When moisture mixes with compressed air, it can lead to contamination, compromising the quality of the end products.

2. Prevents Water Buildup

Compressed air inevitably contains some amount of water vapour, which can condense in cold weather or at low temperatures. This condensation can damage instruments and devices, leading to potential operational issues.

3. Inhibits Microbial Growth

In the food and beverage industry, compressed air is used for mixing and conveying products. When moisture is present in the compressed air system, it can support microbial growth, which can spoil food products.

4. Prevents Freezing

Water accumulation in compressed air systems can freeze, causing jams in the moving components of pneumatic actuators, valves, and measuring devices. Freezing of accumulated water in process lines can disrupt the flow of products or process fluids.

By utilising air dryers, industries can safeguard their operations, maintain product quality, and avoid costly disruptions.

Activated Alumina Ball: Why They Are the Preferred Choice?

Compressed air drying is an important part of the air compressor system; it makes sure that the compressed air is clean, dry, and suitable for final use application. There are a few air drying methods, such as - refrigerated air dryers, membrane air dryers, heatless air dryers, and desiccant air dryers.

Activated alumina is a porous, granular substance that is used as a substrate for catalysts and as an adsorbent for removing water from gases and liquids. From gases to liquid, the activated alumina balls can adsorb it all very adequately. In addition to air drying in industrial applications, they serve various other purposes, such as catalyst support, water purification, and air drying.

The key properties of activated alumina balls are high porosity and surface area, non-swelling,  high mechanical strength, and chemical stability.

How Does Activated Alumina Work in an Air Dryer?

Activated alumina is a form of alumina oxide (Al2O3) processed to be highly porous and granular. The small balls have a sponge-like structure that gives them a massive surface area of up to 200-300 square meters per gram.

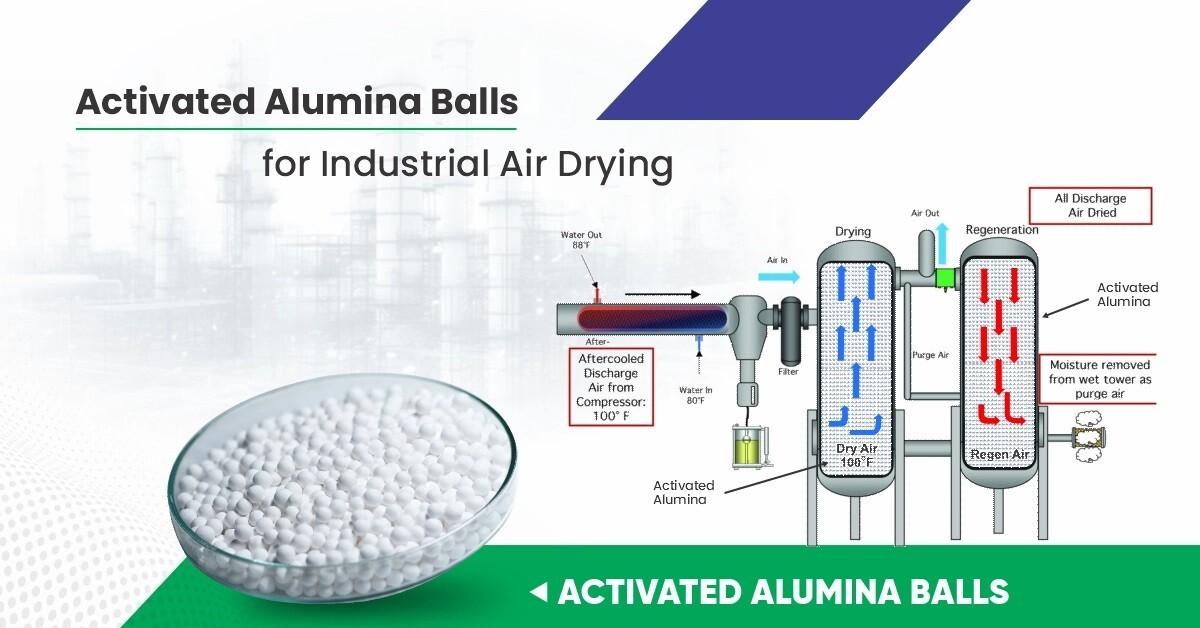

In a desiccant air dryer, the wet compressed air flows through a bed of activated alumina. As the air passes over the granules, water vapour sticks to the surface of the alumina through adsorption. The alumina traps the moisture, leaving the air drier.

Desiccant Air Drying Vs. Other Methods

Here is a comparison table of the types of air-drying methods-

To Wrap It Up: From the following comparison, it is clear that the Desiccant air drying technology is better as it provides lower dew points (down to -70°C / -100°F) compared to other methods.

Most industries, such as food and beverage, petrochemicals, and oil & gas, prefer this method over others. This method reduces energy consumption over time, making it energy efficient and low maintenance due to less breakage.

The desiccant air drying technology works best even in extreme environmental conditions, while other technologies struggle a lot to thrive in such environments.
